Heavy-Duty Small Lithium-Ion Battery Cabinet | Indoor/Outdoor | Fire-Safe
$4,660.00 + GST
Heavy-Duty Large Lithium-Ion Battery Cabinet | Indoor/Outdoor | Fire-Safe
$5,985.00 + GST
Guaranteed Safe Checkout
customers
viewed this product in the last 24 hours
🛡️
Lifetime Warranty
Complete Protection
🏆
24 Years in Business
Trusted Experience
Safe Work AU
Fully Compliant
📦
Free Delivery
Australia-WideKey Features
Fully insulated compartments
1300ºC continuous rated HotWall insulation

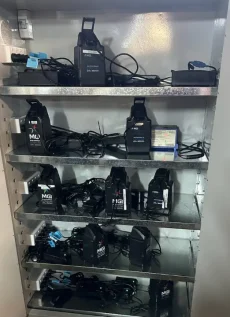

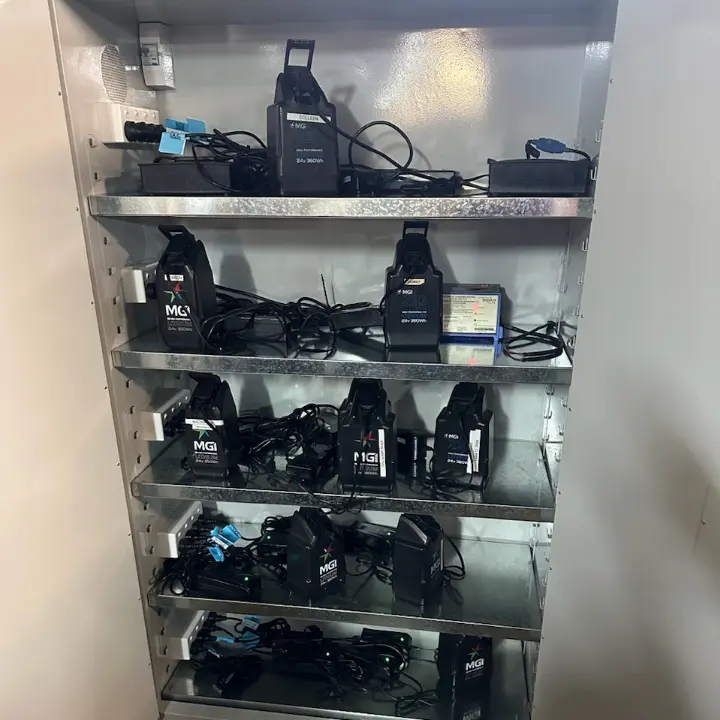

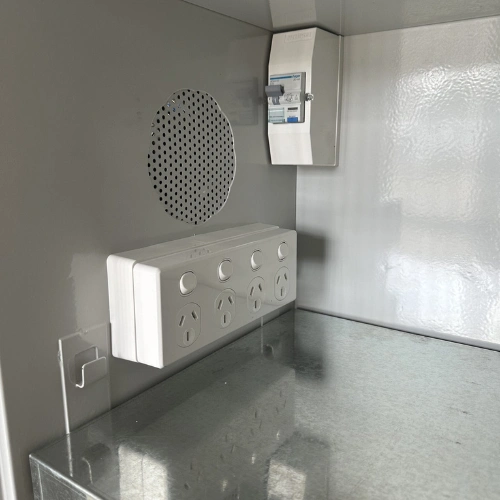

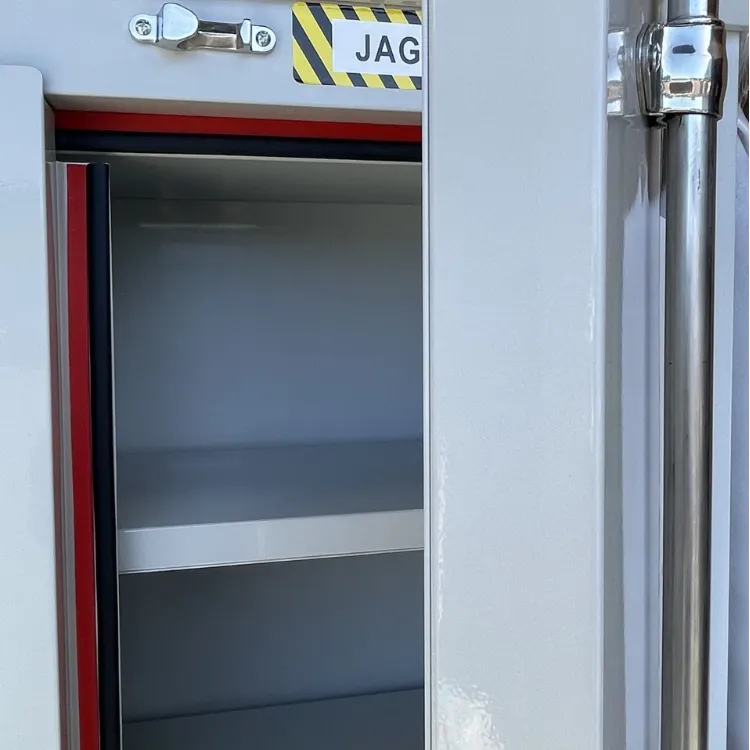

The 48V Heavy Duty Large Li-Ion Battery Cabinet for inside or outside use has 20 power sockets for you to plug in 20 lithium-ion battery chargers – that’s four x 48 volt batteries per compartment (20 in total). Each compartment is insulated completely all around like in a kiln, with 1300 degrees C continuous rated HotWall insulation. We are aware that exploding batteries light up neighbouring batteries and we don’t want a whole cabinet full of exploding batteries having a thermal runaway event at the same time.
When a battery has a thermal runaway event, a trail of Hydrogen Gas is emitted firstly, which is immediately followed by the Hydrogen Fluoride smoke and suddenly within 1-3 seconds the battery will explode. The flames follow the trail of gas and smoke as seen in our previous video. The explosion can be so quick and so violent that the only way to handle the effects is to contain it and let the battery spend its energy.
The TSCW ventilation system we have developed is paramount to allow the gases to escape from the exploding battery in each compartment – without this ventilation system pressure may build up from the hydrogen gases and fluoride fumes which could actually just blow the doors open or worse.
A lithium-ion battery explosion can reach temperatures of over 1000 degrees C. Without the HotWall insulation the temperature inside each compartment would quickly permeate through to the outside wall of the cabinet – creating another possible fire disaster within the factory.
Lithium-ion battery management is a serious business. You should never choose a flammable goods cabinet to house your lithium-ion batteries – too many risks! If it was that simple we would have lead you to our Flammable Goods Cabinet range.
Technical Specifications
Comprehensive technical details for compliance and installation planning
Dimensions (H x W x D)
1905mm X 1100mm X 500mm
Weight
275kg
Material
1.8mm thick steel inner walls and 1.2mm thick outer walls
Compliance
AS3000-2018
Warranty
12 months for electrical parts and Lifetime for the carcass
Shelves
Four adjustable heavy-duty double layer 1.5mm thick steel 1430ºC continuous rated HotWall Insulated shelves
Complete technical specifications, compliance certificates, and installation guide
Lithium-Ion Batteries and Charging – Fire Risk
Lithium-Ion battery explosions are causing significant damage worldwide
Frequently Asked Questions
Thermal runaway occurs when a lithium-ion battery overheats and releases hydrogen gas, followed by hydrogen fluoride smoke, leading to an explosion within 1-3 seconds. The explosion can reach over 1000 degrees C and cause cascading failures in nearby batteries. Learn more about lithium-ion batteries and charging fire risks and the specific safety measures required.
Our HotWall insulation system completely surrounds each compartment like a kiln, with continuous ratings of 1260-1430 degrees C. This prevents heat from permeating to the cabinet’s exterior walls, protecting your facility from secondary fire disasters when thermal runaway occurs.
Check our video on how well our HotWall Extreme Temperature Insulation works.
The TSCW ventilation system safely expels hydrogen gases and hydrogen fluoride fumes through flame arrestors to exhaust vents. Without proper ventilation, pressure buildup could force the Large Li-Ion Battery Cabinet doors open or create dangerous conditions. This system is critical for safe battery management.
No – regular flammable goods cabinets are not designed for lithium-ion battery risks. The unique dangers of thermal runaway, hydrogen gas emissions, and extreme temperatures require specialised containment solutions. For first-time buyers wondering about the differences, check our battery charging cabinet compliance guide.
Our Large Li-Ion Battery Cabinets accommodate 4 batteries per compartment, with total capacities ranging from 4 stations (1 compartment) to 20 stations (5 compartments). The Heavy Duty model specifically supports 48V batteries, while other models accommodate various lithium-ion battery types with their respective chargers.
Each compartment is individually insulated to contain explosions and prevent thermal runaway from spreading to neighbouring batteries. The HotWall insulation and TSCW ventilation system work together to contain the explosion, manage dangerous gases, and protect your facility from secondary fires.
For more information please refer to our Frequently Asked Questions.
IP ratings for cabinets indicate their level of protection against the intrusion of solid objects (like dust) and liquids (like water). Common ratings for outdoor cabinets include IP55 (dust and low-pressure water jets), IP65 (dust and water jets), and IP66 (dust and high-pressure water jets). The first digit indicates protection against solids, and the second against liquids. Higher numbers generally mean better protection.

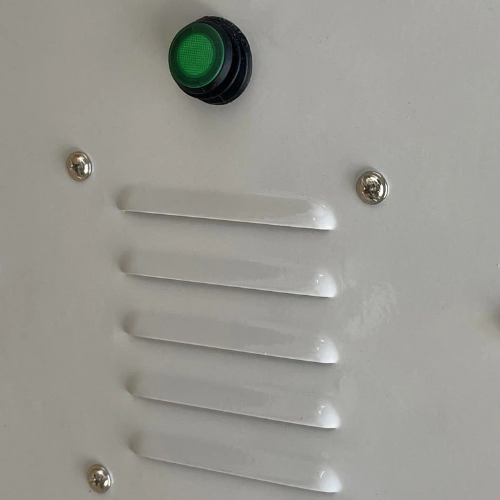

On the 20 station and 8 station lithium-ion Heavy Duty units, the electric switches on the outside that turn on the fans have an IP 56 rating.
For more information please refer to our Frequently Asked Questions.
