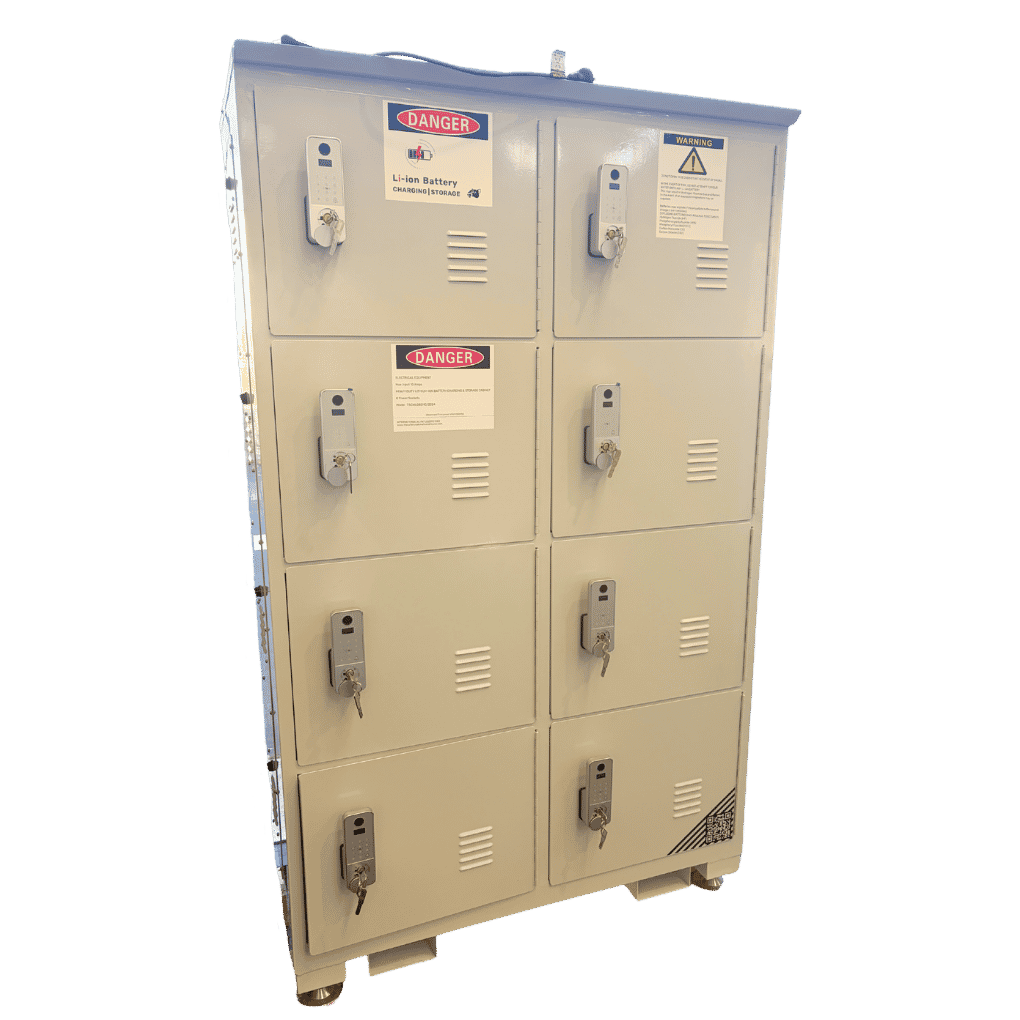

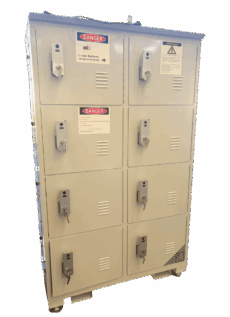

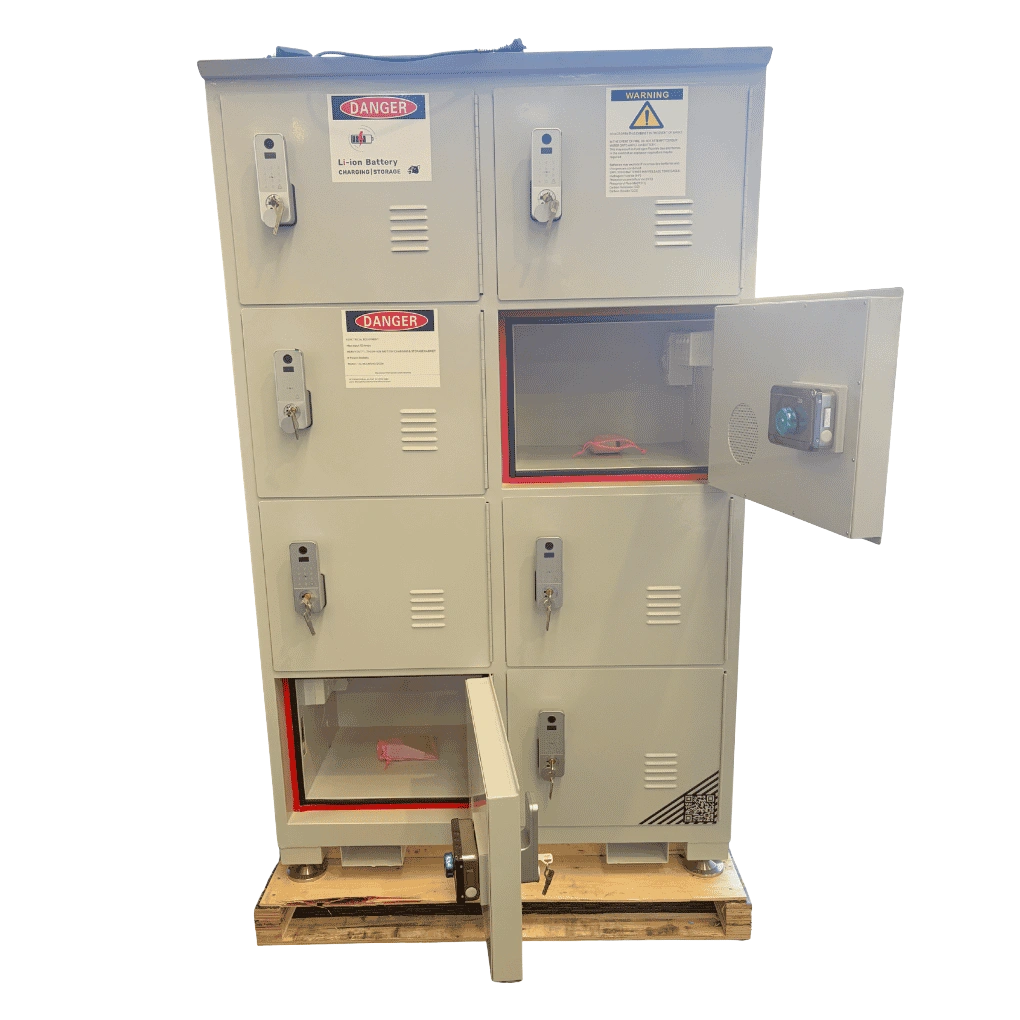

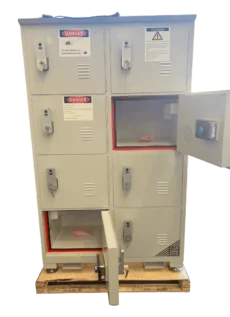

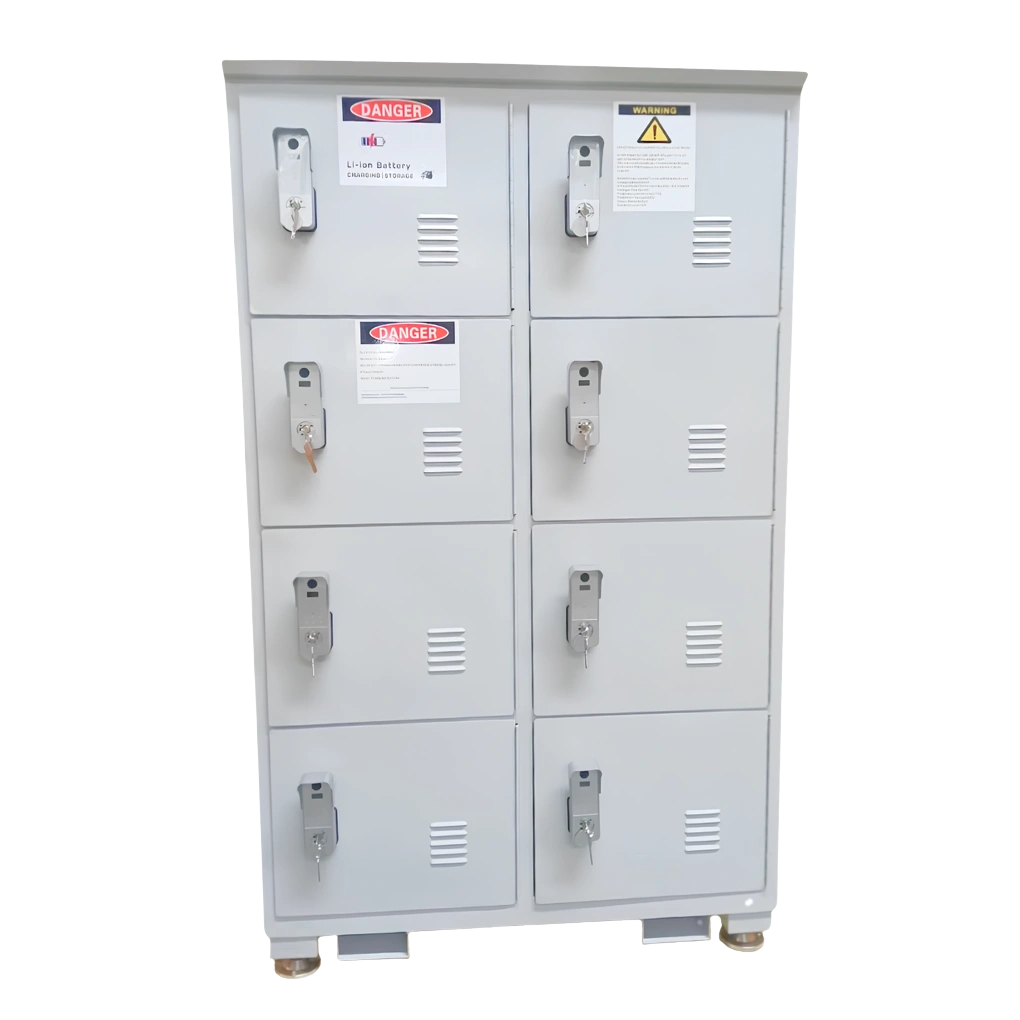

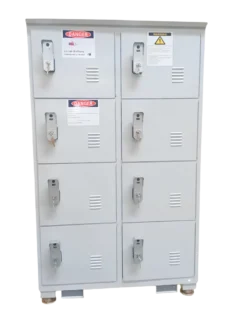

Heavy Duty Lithium-Ion Battery Cabinet | 8 Door | Fire-Safe

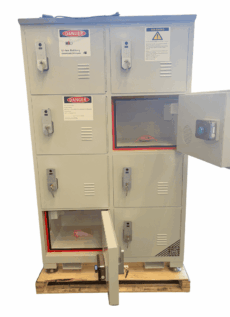

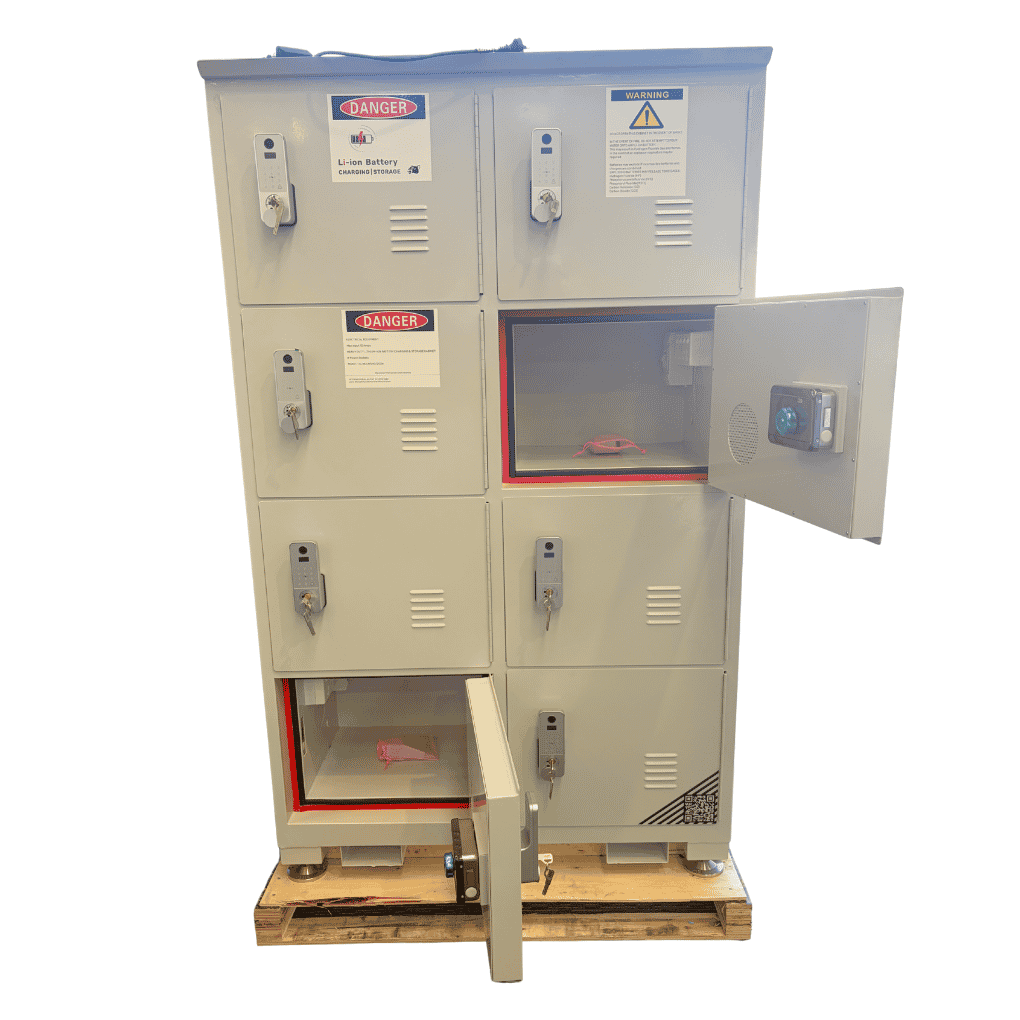

For inside or outside use, the 32 Station Li-Ion Battery Cabinet has 32 power sockets for you to plug in 32 lithium-ion battery chargers – up to 4 x 12 - 48 volt batteries per compartment (32 in total). Each compartment is insulated completely all around like in a kiln, with 1300 degrees C continuous rated HotWall insulation. Creating 60mm thick walls floors and ceilings with 1.8mm thick interior steel lining and 1.2mm exterior steel cladding resulting in a 90 min fire rating and a 90 min integrity compliance required to contain exploding large 48 Volt Li-ion batteries.

We are aware that exploding batteries light up neighbouring batteries and we don’t want the whole cabinet full of exploding batteries having a thermal runaway event all at the same time, Hence the compartments. The containment of only 4 batteries per compartment is paramount. Many battery tools are now powered by 48 volt batteries along with e-bikes, scooters and the like, they all need respect.

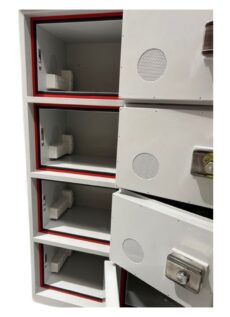

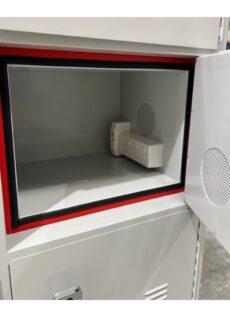

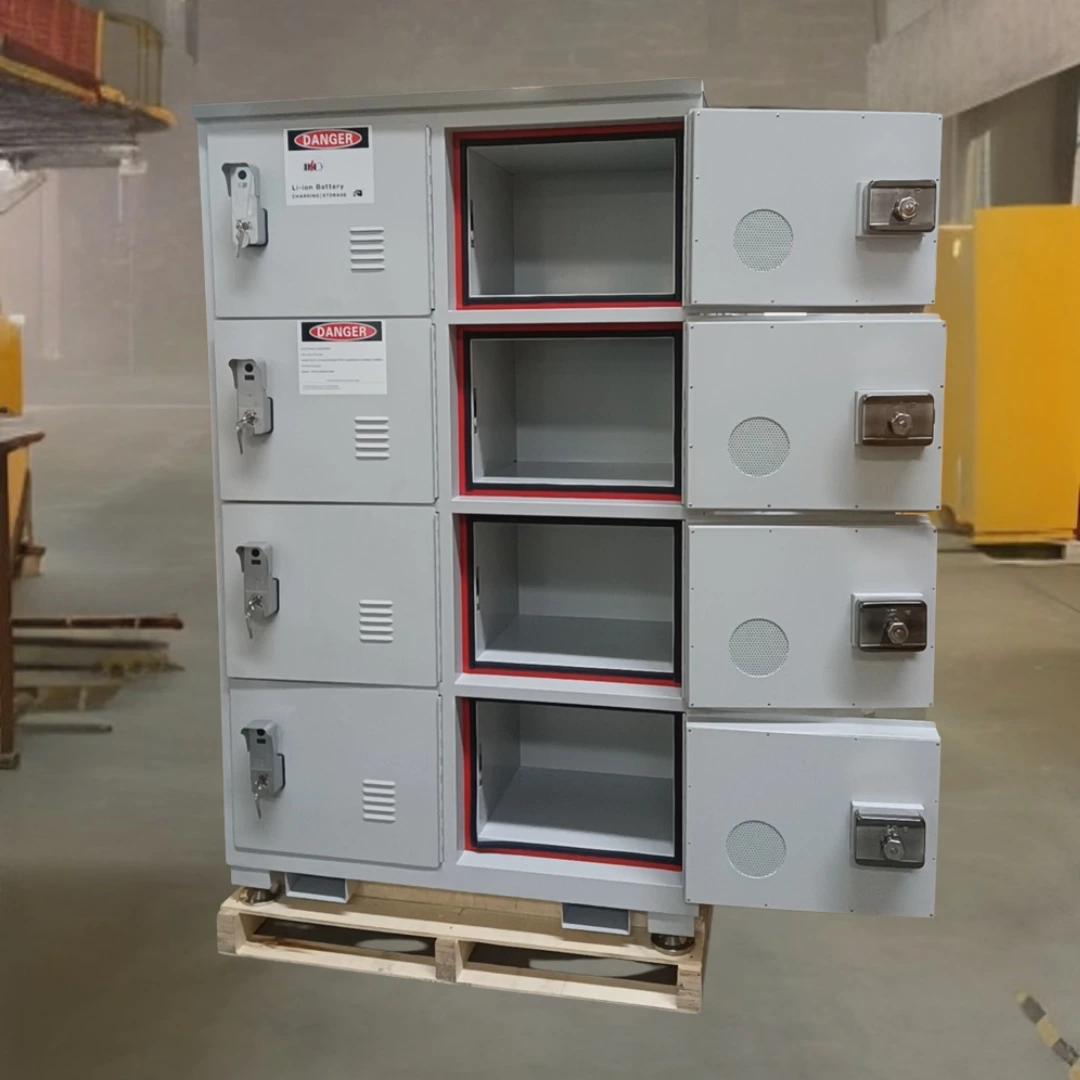

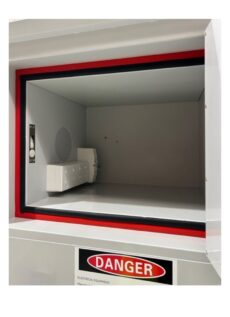

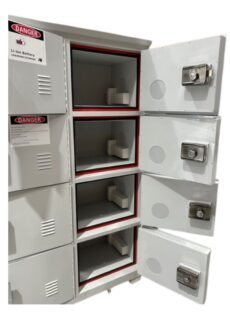

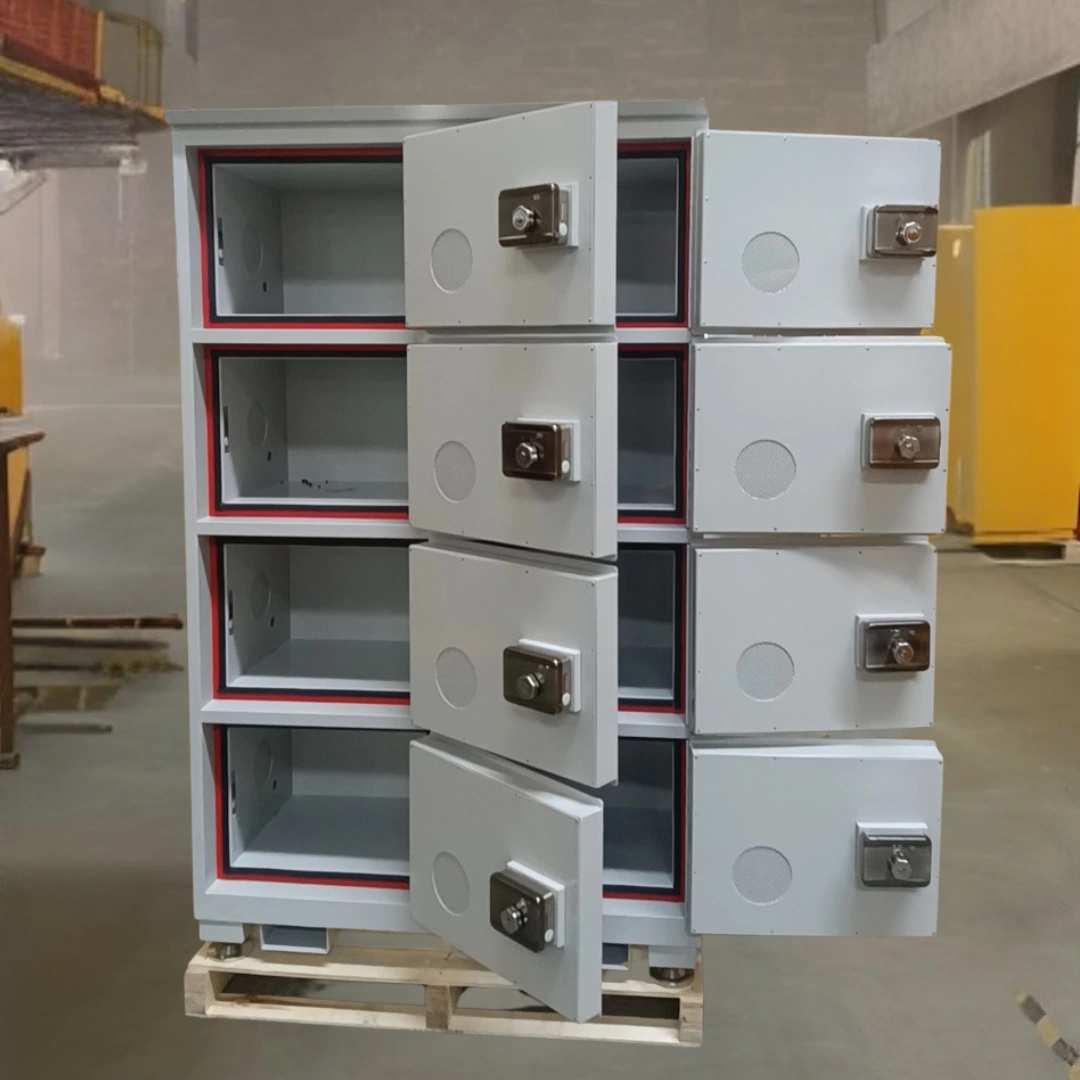

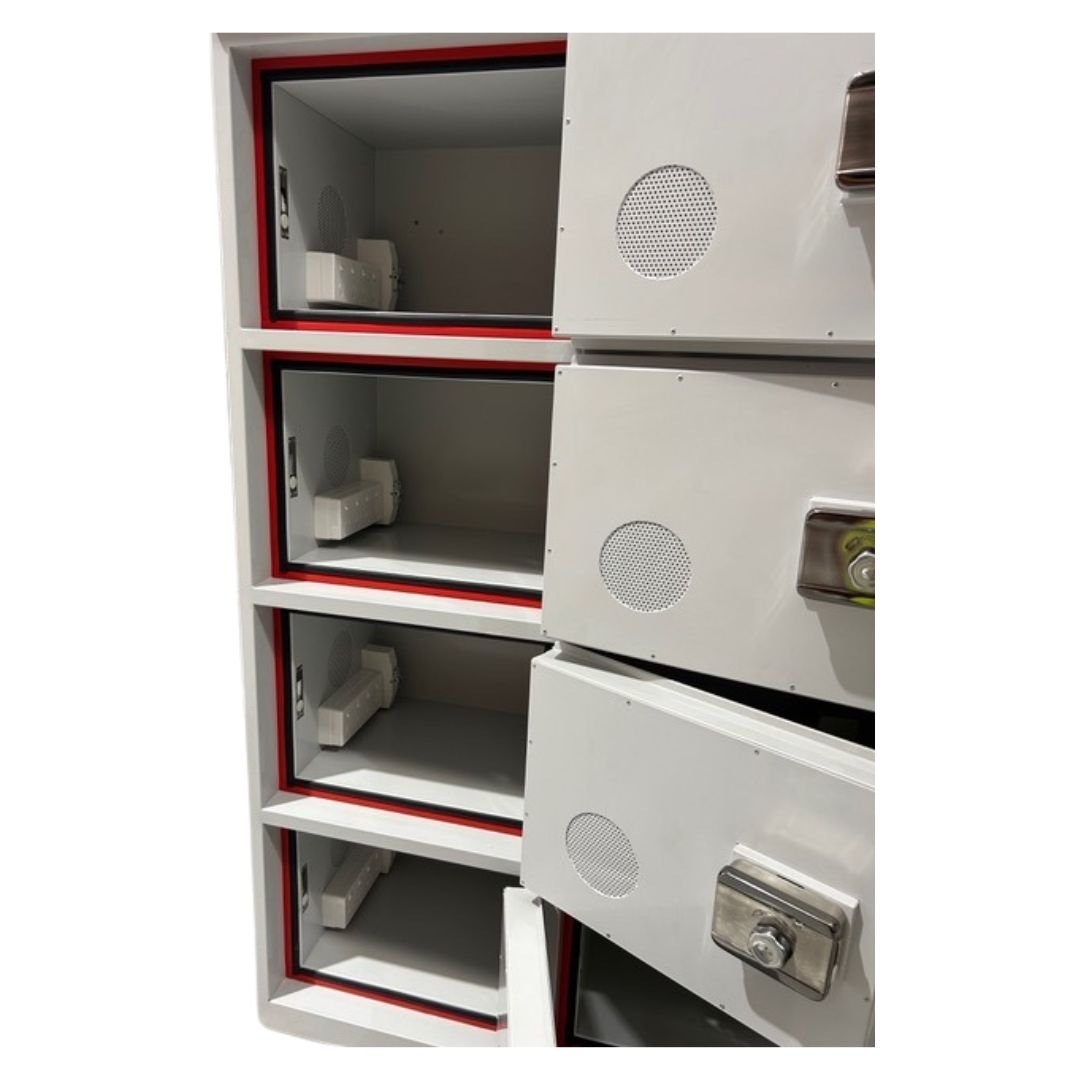

Our Heavy Duty 32 Station Li-Ion Battery Cabinets now feature our 1100°C fire-rated expandable door and shelf seals, visible as the red strips long the shelf edges. It expands under heat to help maintain compartment separation, reducing the spread of smoke, flames, and hot gases. This helps lower the risk of a thermal runaway event in one compartment affecting batteries in adjacent compartments and escalating into a cabinet-wide incident.

TSCW double bake powder coat system with high Zinc first coat and high build- top coat of RAL 9003 colour helps keep ambient temperatures lower even in full sunlight.

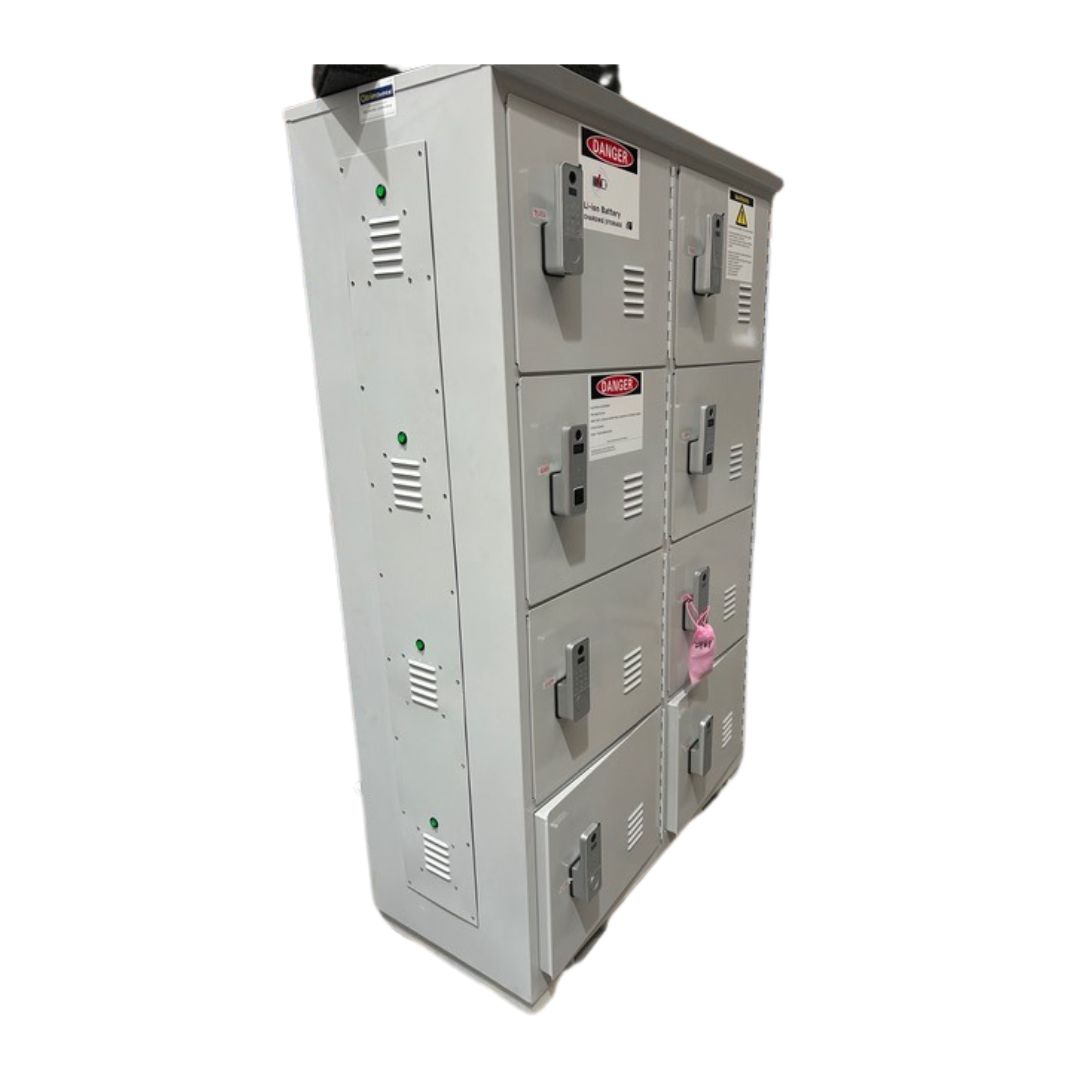

• Outside Sizes 1870mm High x 1100mm wide 500mm Deep

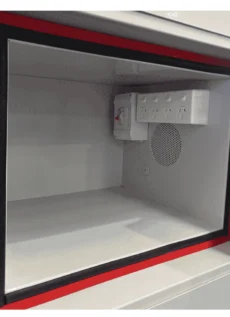

• Compartment sizes inside are 320mm high 450mm wide x 380mm deep

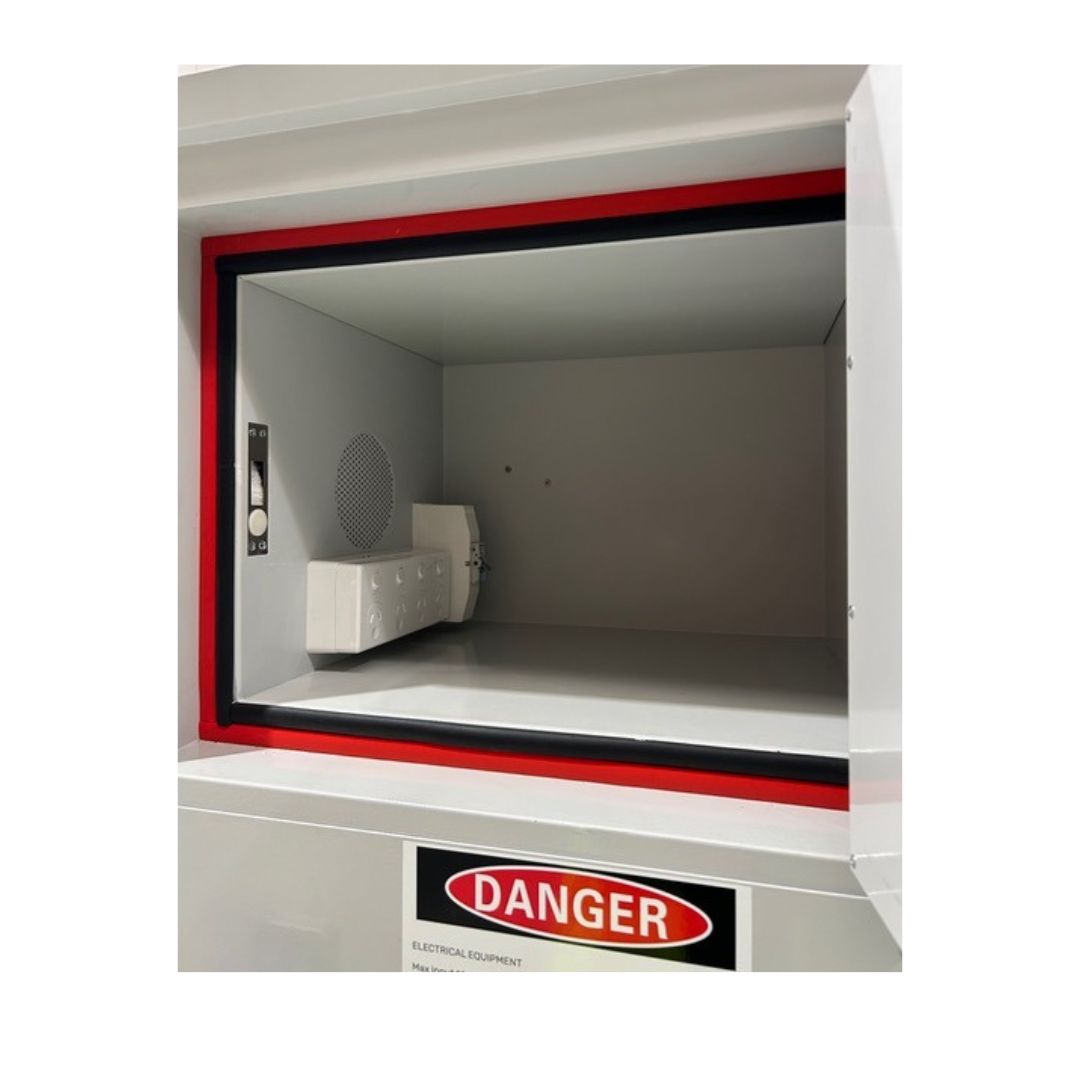

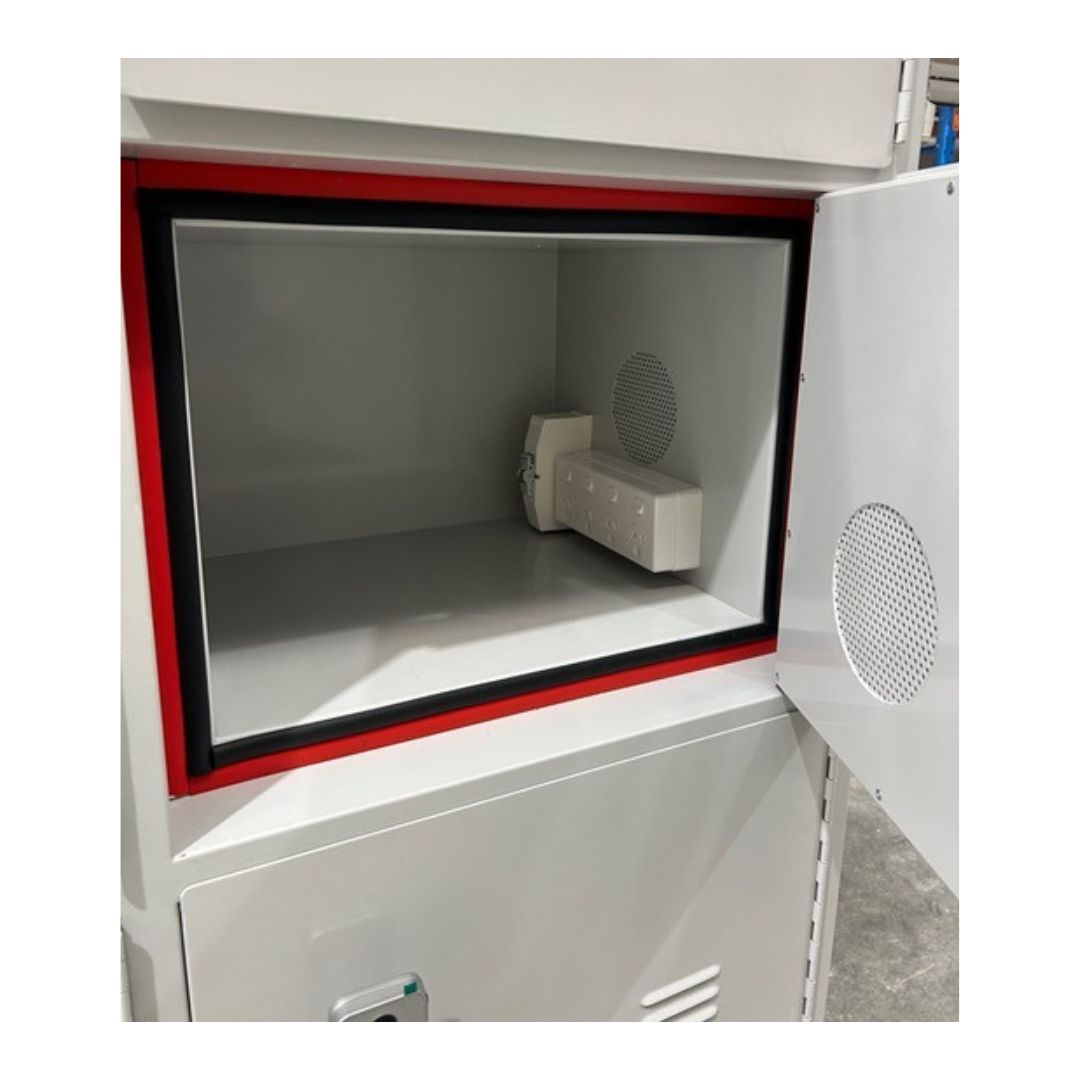

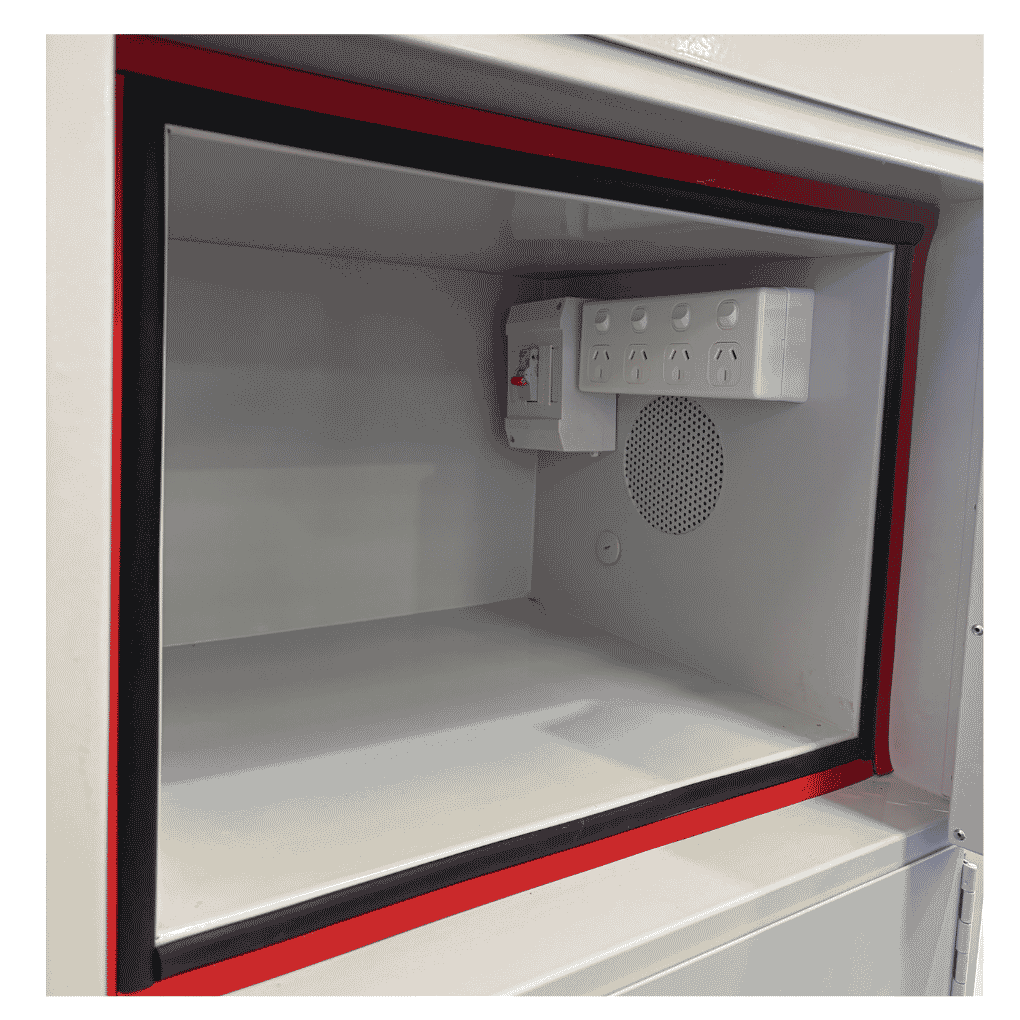

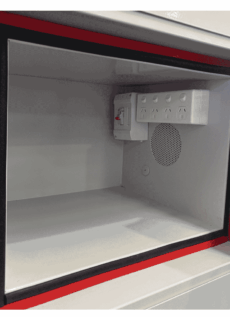

• 1 x 4 gang power socket per compartment
• 1 x 2 pole separate circuit breaker in each compartment, for overloading or earth leakage .. some battery chargers can be faulty
• 1 x cooling fan per compartment
• A 1.5m long power cable is concealed in the back wall of the cabinet for security in transit once removed it simply plugs into your 10 amp wall socket , same as normal house power wall sockets

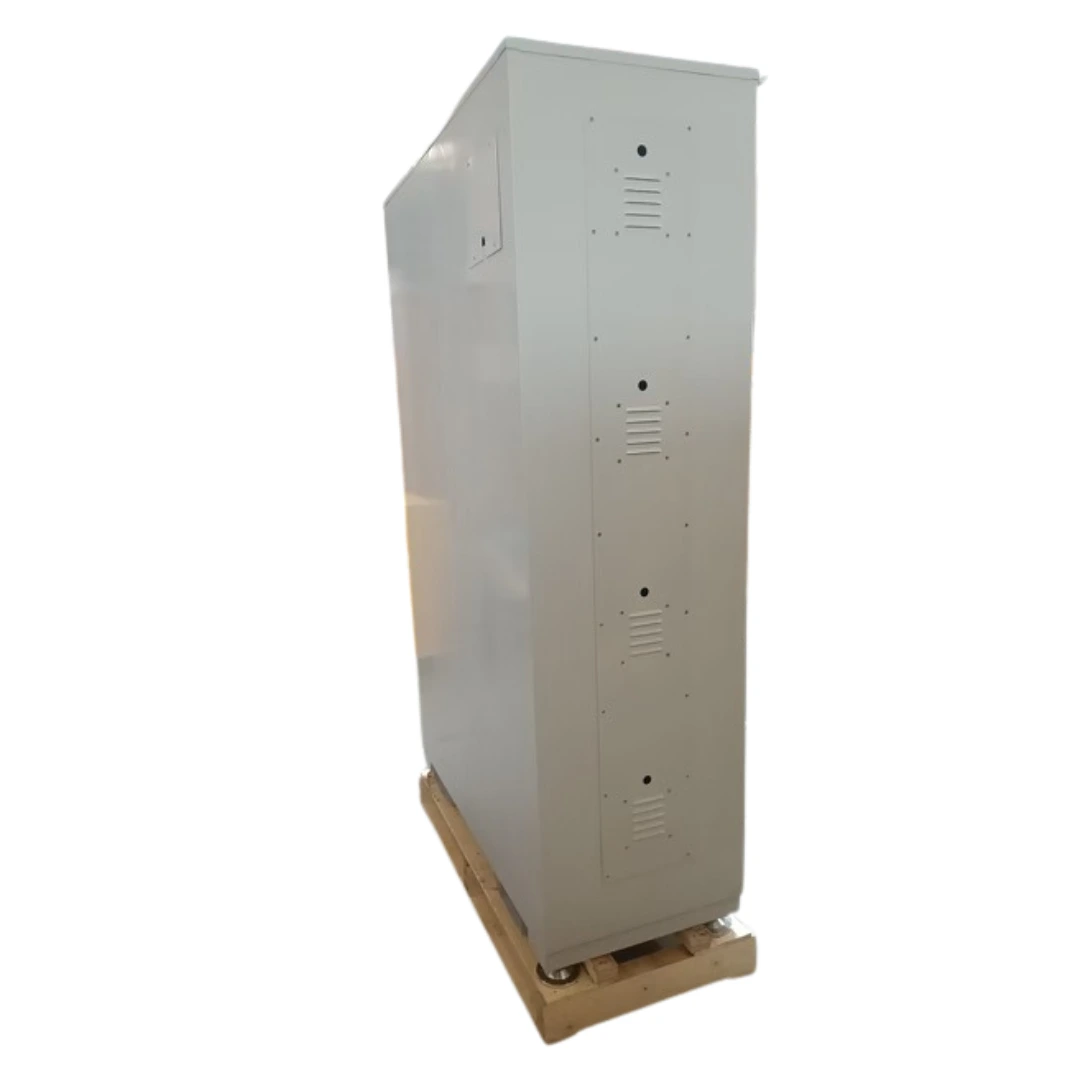

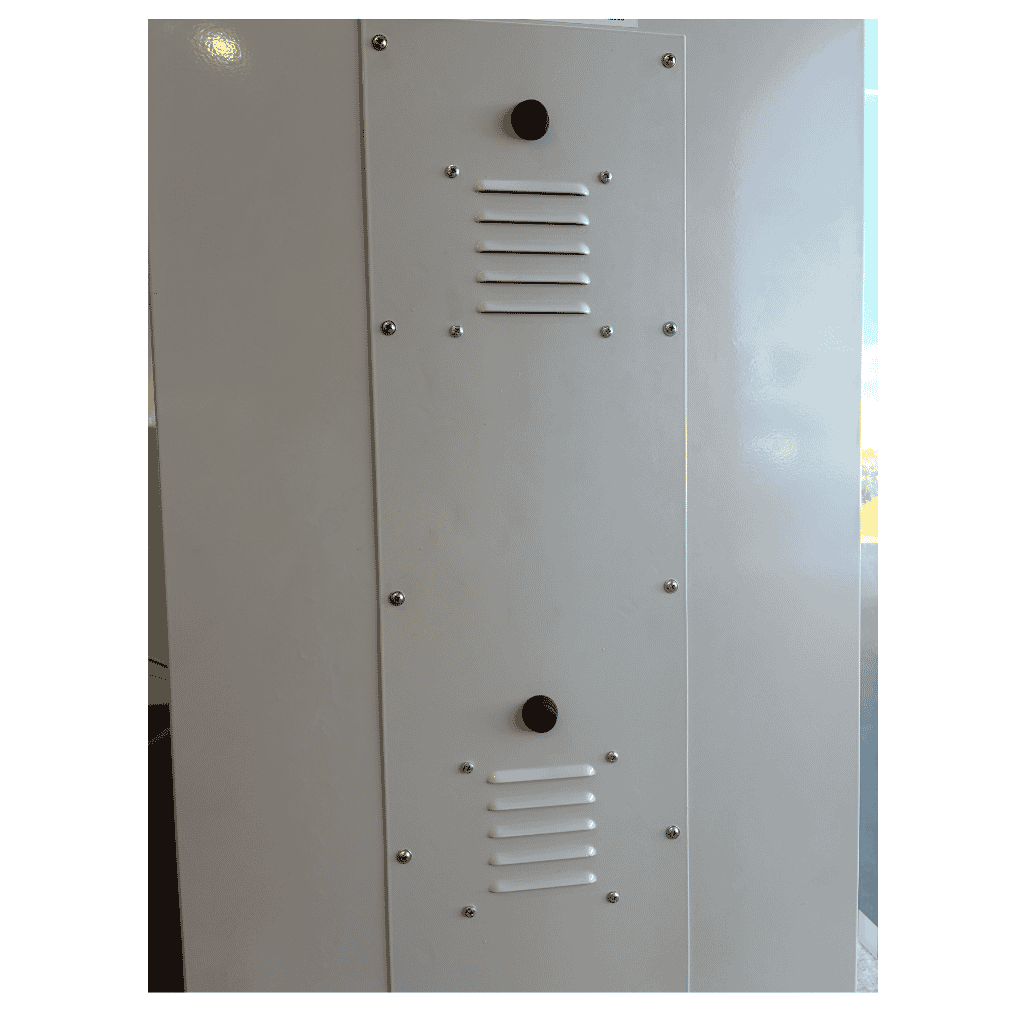

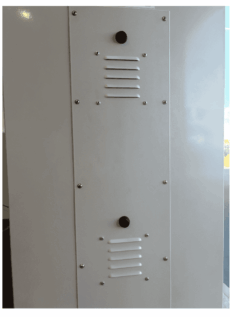

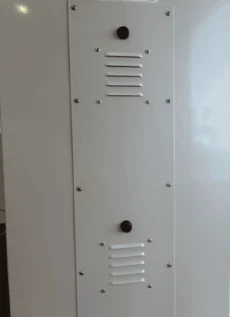

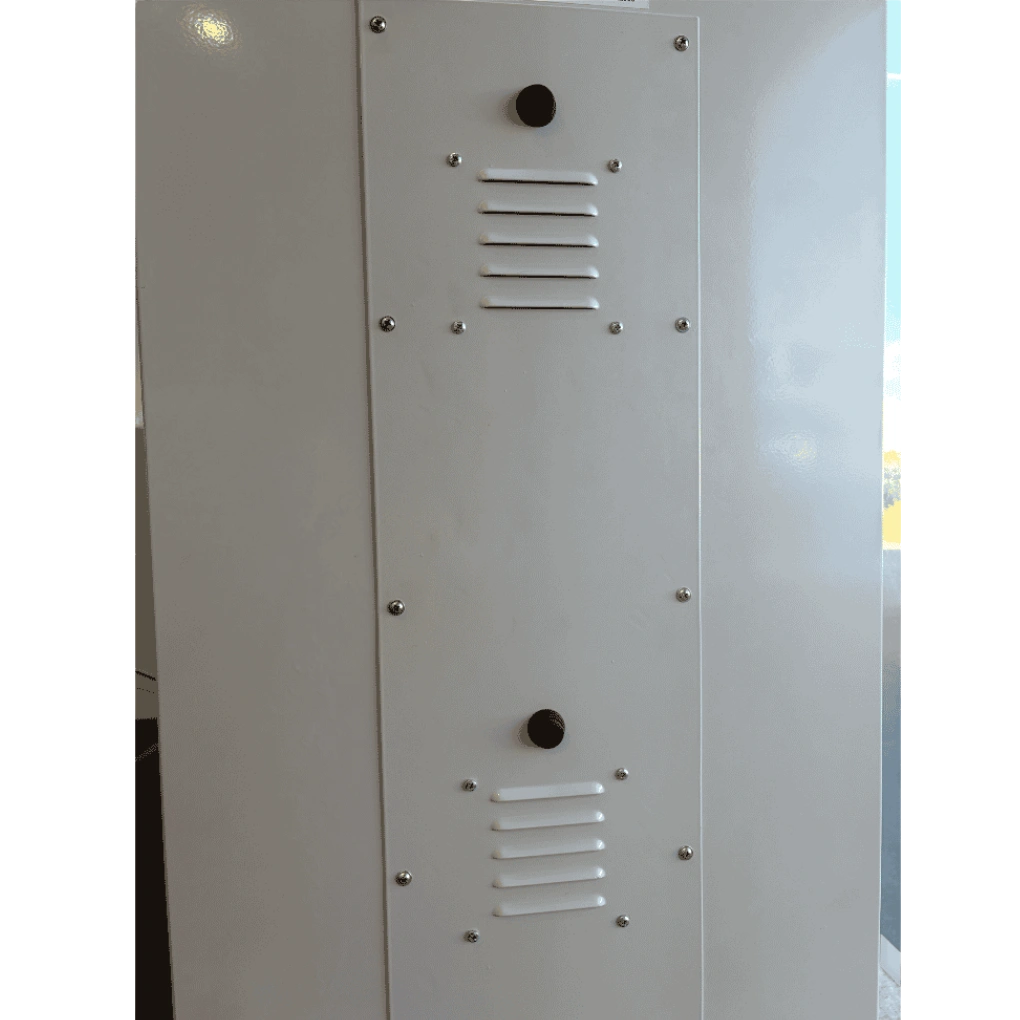

• Each compartment has an intake vent and a back pressure system allowing the cooling air to be introduced through the door , the exhaust vent, inside the outer side wall of each compartment has a flame arrestor, cooling fan, filter and finally a louver vent to aim any residue smoke towards the ground
• 4 x 304 Stainless Steel adjustable feet
• 2 x fork pockets for easy cabinet relocation

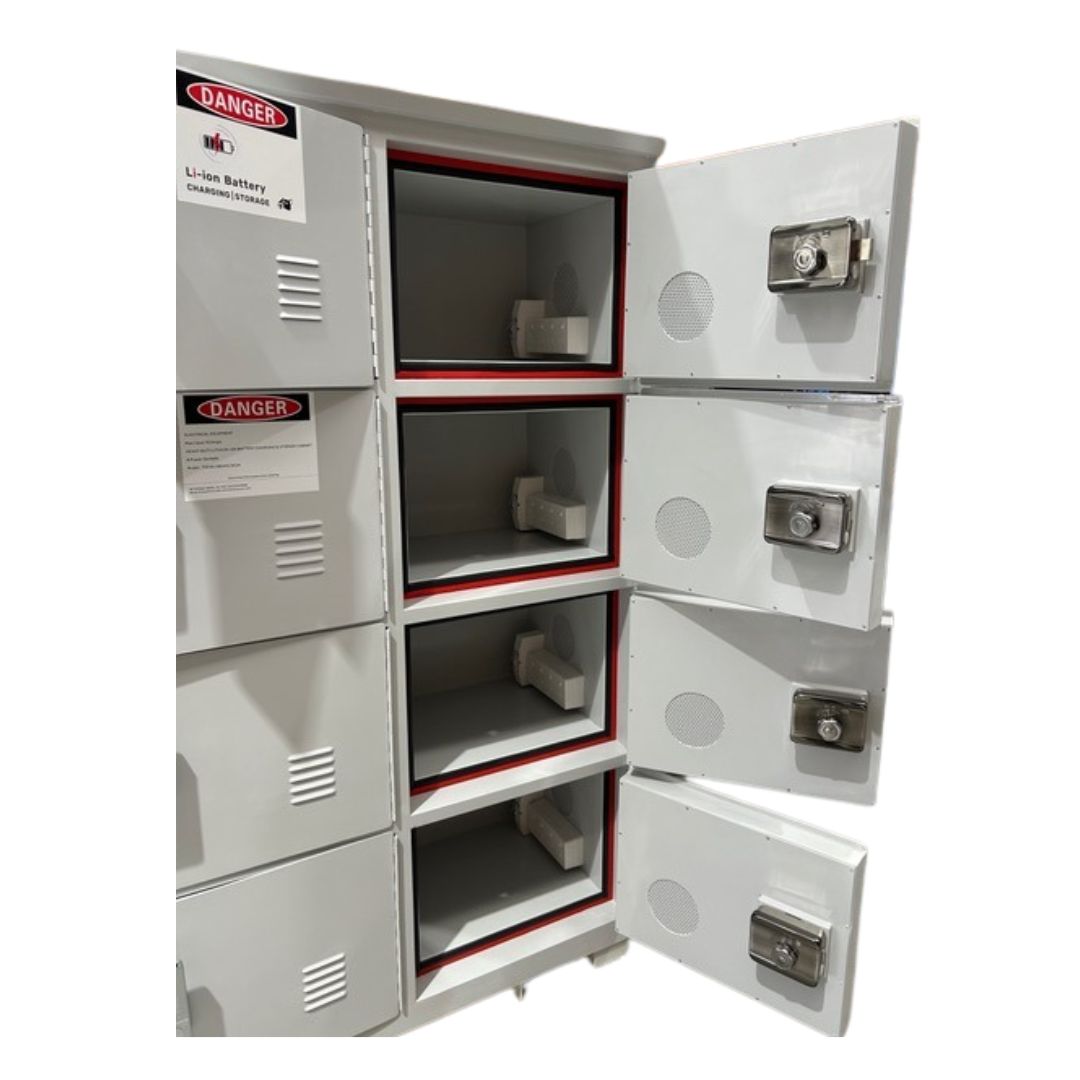

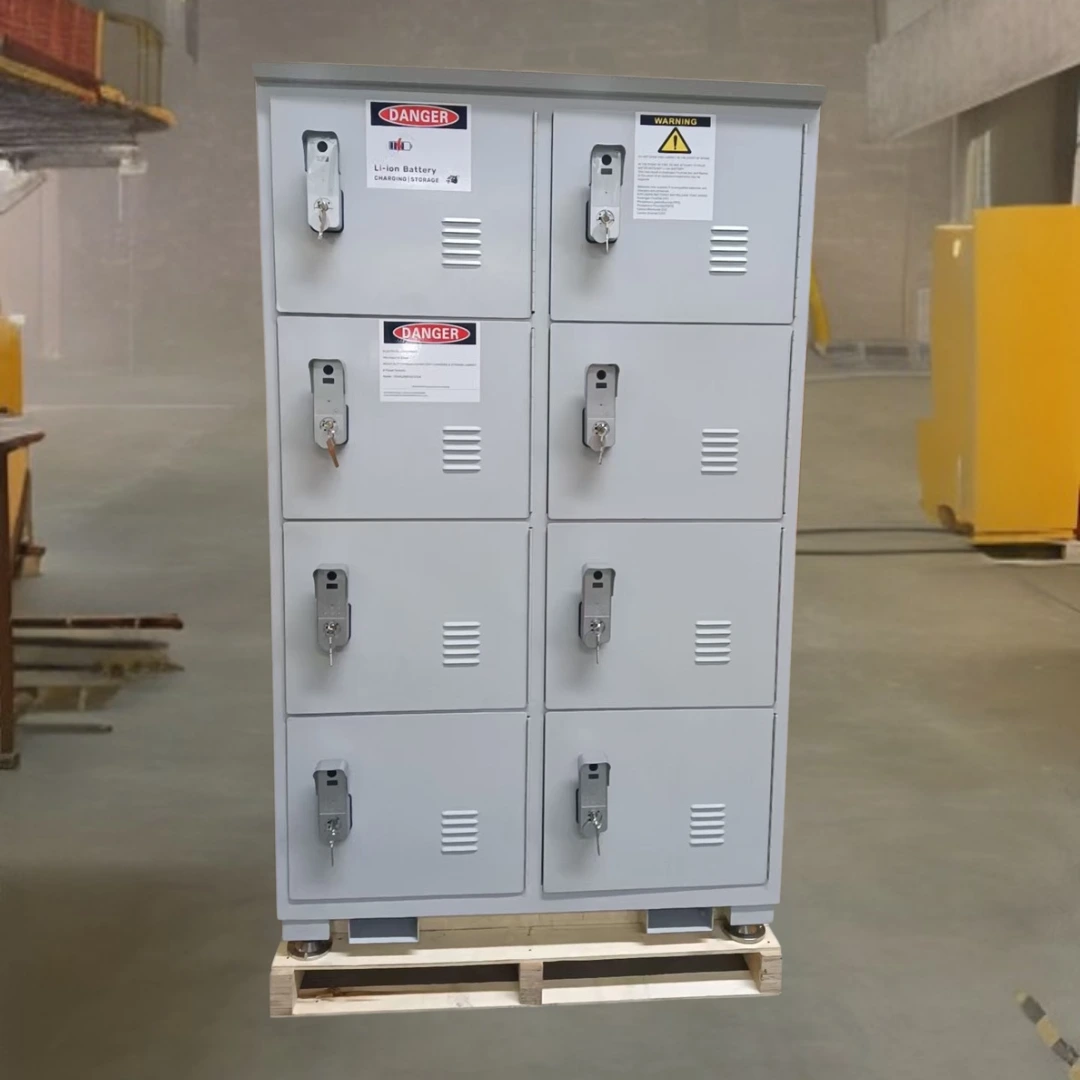

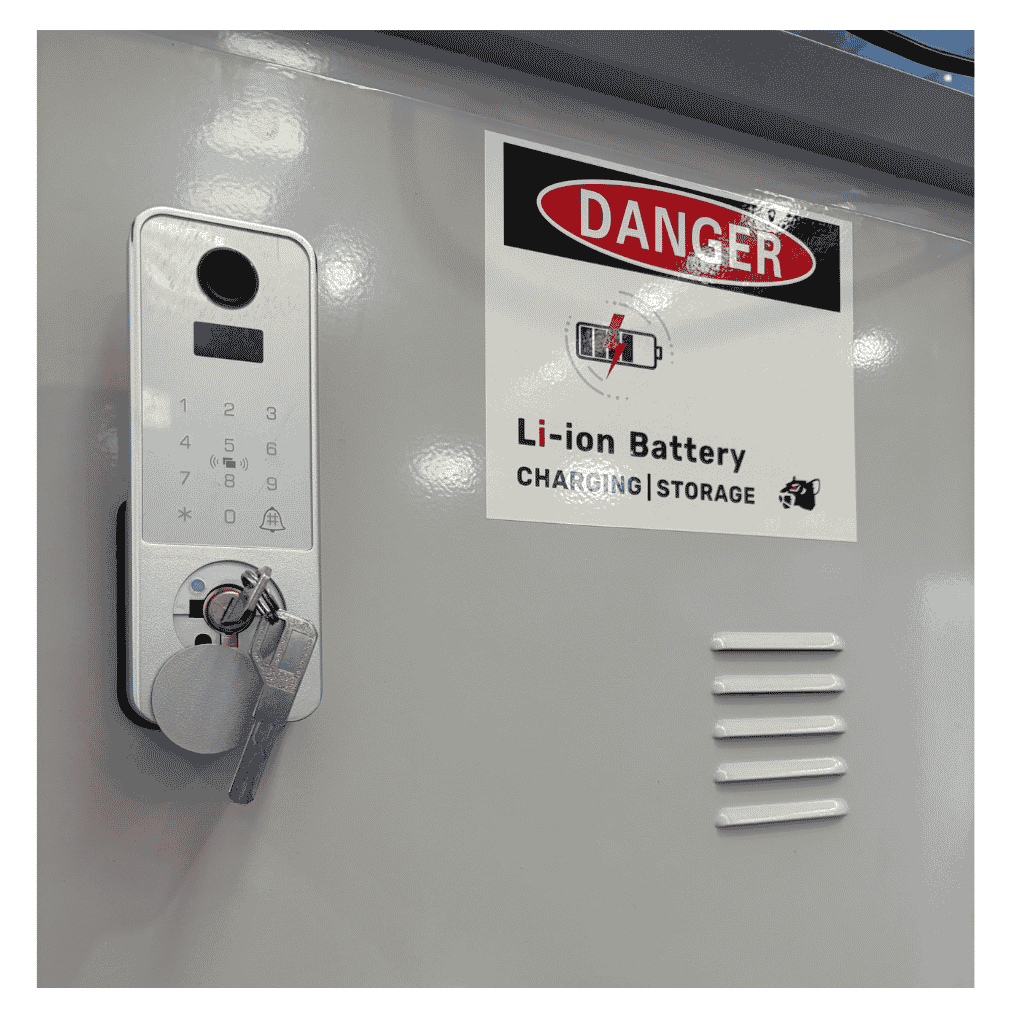

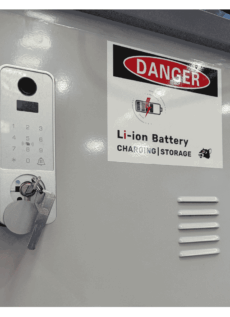

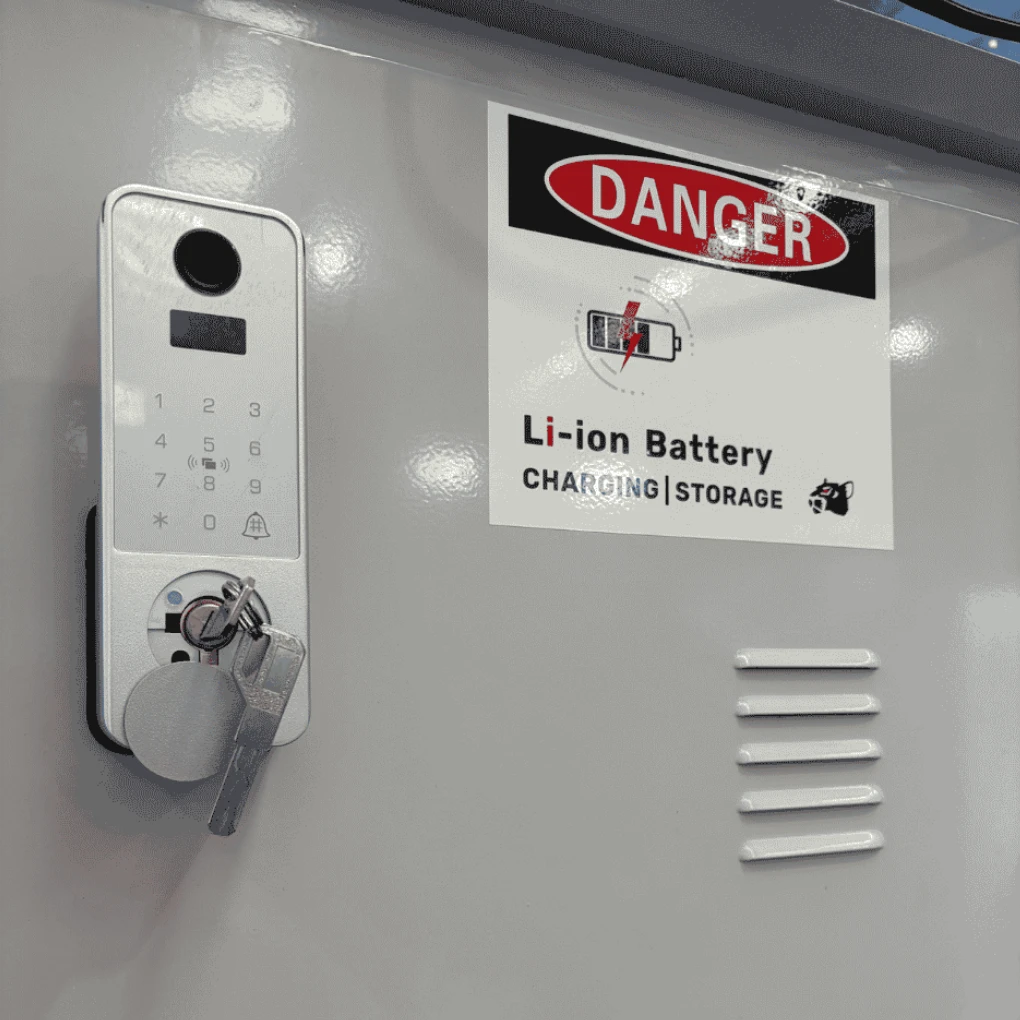

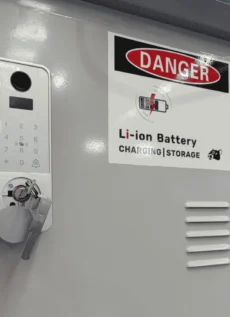

Each door has a 304 Stainless Steel combination lock operated with either, finger print, swipe key, combination or emergency key. A managers master combination number can be used to open any combination lock.

Comes in a heavy plywood crate.
